Inflatable air-column frame
IT027 uses a pump-assisted inflatable air-column structure. After inflation, the shelter still needs to be positioned, anchored and secured with the appropriate guy lines for the campsite.
Model IT027
8 m² Family Inflatable Camping Tent with Dual Entry
The IT027 is an 8.0 m² inflatable camping tent developed for family-camping product ranges, outdoor retailers, campsite programs and private-label sourcing. Its catalog-listed configuration combines 420D Oxford fabric, a dual-entry layout, twin small skylights and a 210 cm maximum listed height.
Pre-filled message — just review and send.
ModelIT027
Floor area8.0 m²
Pitched size300 × 265 × 210 cm
Listed weight21.6 kg
Product overview
Why 8.0 m² and a 210 cm listed height matter in a family camping range.
IT027 is an inflatable camping tent with a listed floor area of 8.0 m² and a catalog maximum height of 210 cm. That combination is intended for family-camping product lines where standing room at the centre, dual access and a defined floor footprint are more useful than an ultralight backpacking spec.
The dual-entry layout gives two ways in and out of the shelter. Twin small skylights are roof openings in the listed configuration; they are not a panoramic canopy. The outer fabric is 420D Oxford with a double-layer PVC groundsheet. The tent includes a supplied air pump and has a 3000 mm complete-tent waterproof rating. The waterproof test method and certification evidence are not stated.
No retail price is displayed. Wholesale and private-label pricing is quoted according to model, order quantity, branding, packaging, destination and compliance requirements.
Configuration highlights
Listed construction buyers can review.
Dual-entry configuration
Two entries are listed for access from either side of the shelter. Referred to as the AB version in the source catalog.
420D Oxford and PVC groundsheet
The listed construction combines a 420D Oxford outer fabric with a double-layer PVC groundsheet.
Wholesale and private-label review
Visible color, logo placement, instructions, carry bag and carton artwork are available for review. Final feasibility is subject to model and order requirements and is confirmed before production.

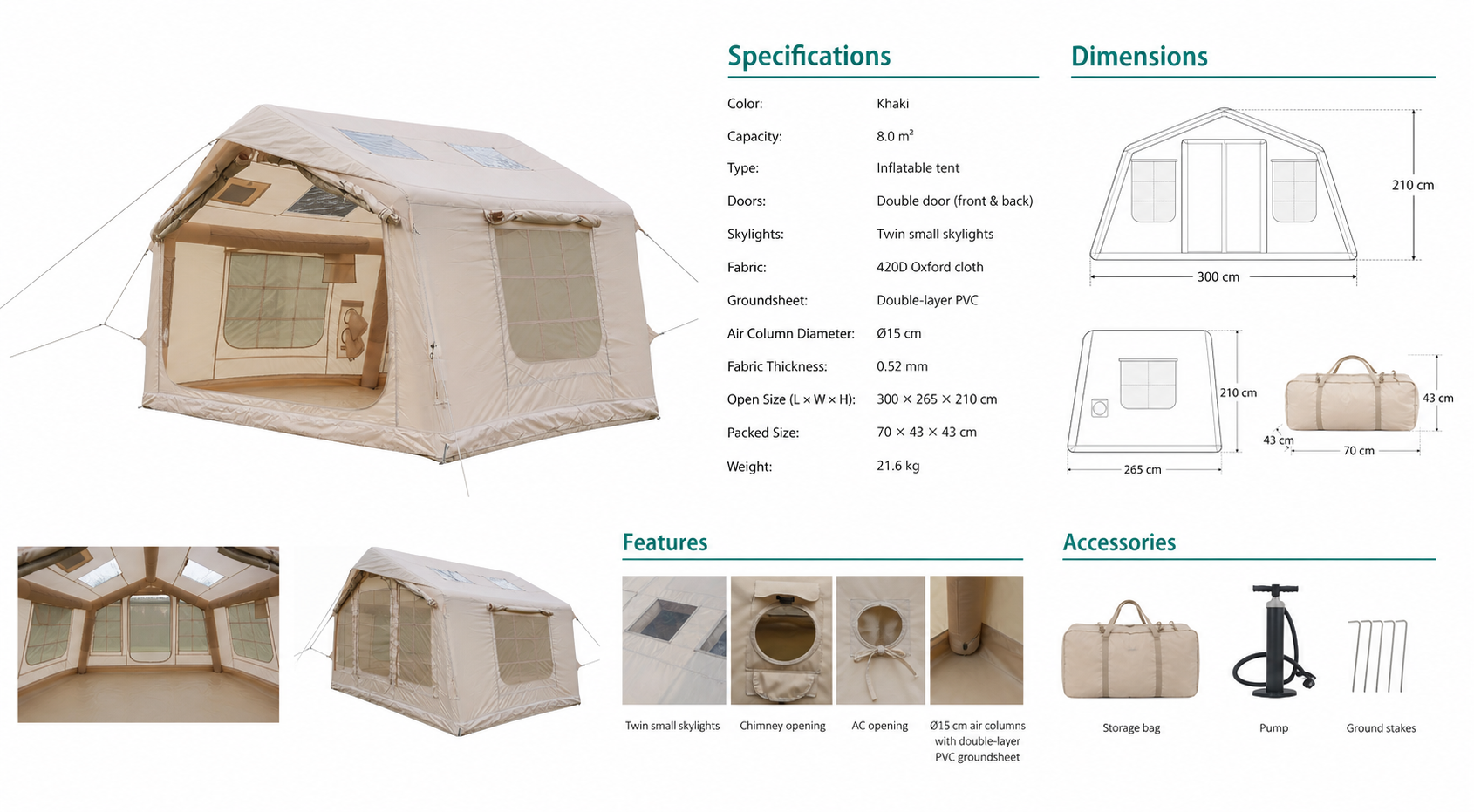

Technical specifications
Catalog-listed product data.
Production tolerances, included parts and test targets should be reconfirmed before ordering.
| Model | IT027 |
|---|---|
| Catalog reference | AB-style dual-entry configuration |
| Entry and ventilation layout | Dual-entry configuration; twin small skylights; catalog-listed utility ports |
| Listed floor area | 8.0 m² |
| Pitched dimensions | 300 × 265 × 210 cm |
| Packed dimensions | 70 × 43 × 43 cm |
| Listed weight | 21.6 kg |
| Outer fabric | 420D Oxford |
| Groundsheet | Double-layer PVC |
| Air column | Ø15 cm / 0.52 mm |
| Air pump | Included with the tent |
| Inflation time | Approximately 5 minutes with the supplied pump |
| Color shown | Khaki |
| Waterproof rating value | 3000 mm |
| Waterproof performance scope | Complete tent |
| Waterproof test method | Not stated |
| Waterproof certification evidence | Not stated |
The 3000 mm value and complete-tent scope are verified product facts. The test method and certification evidence remain unknown because they are not stated.
Expanded product story
Khaki dual-entry shelter for family and campsite programs.

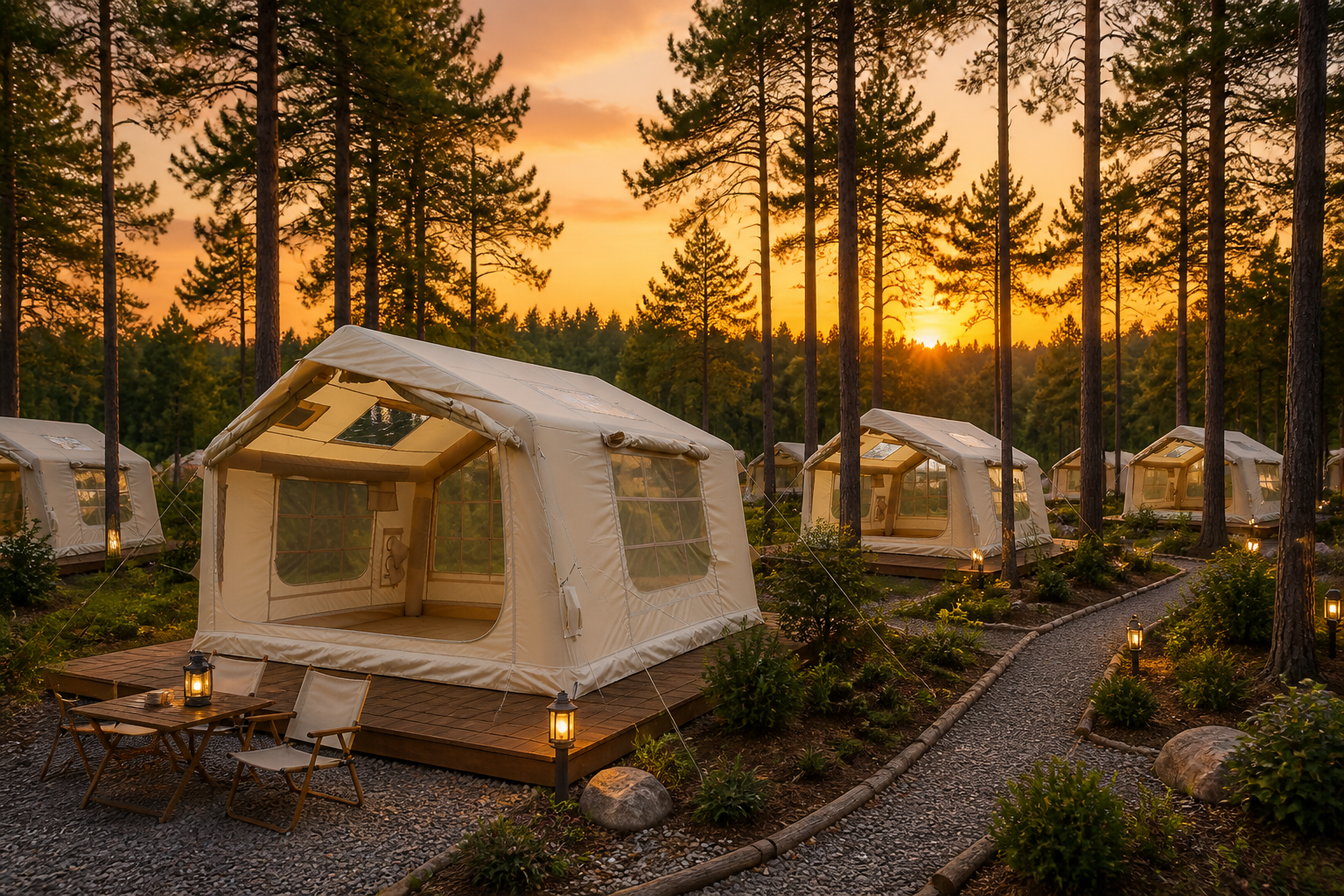

Repeatable shelter for outdoor programs
The 8.0 m² format supports family camps, rental fleets and nature-based accommodation.

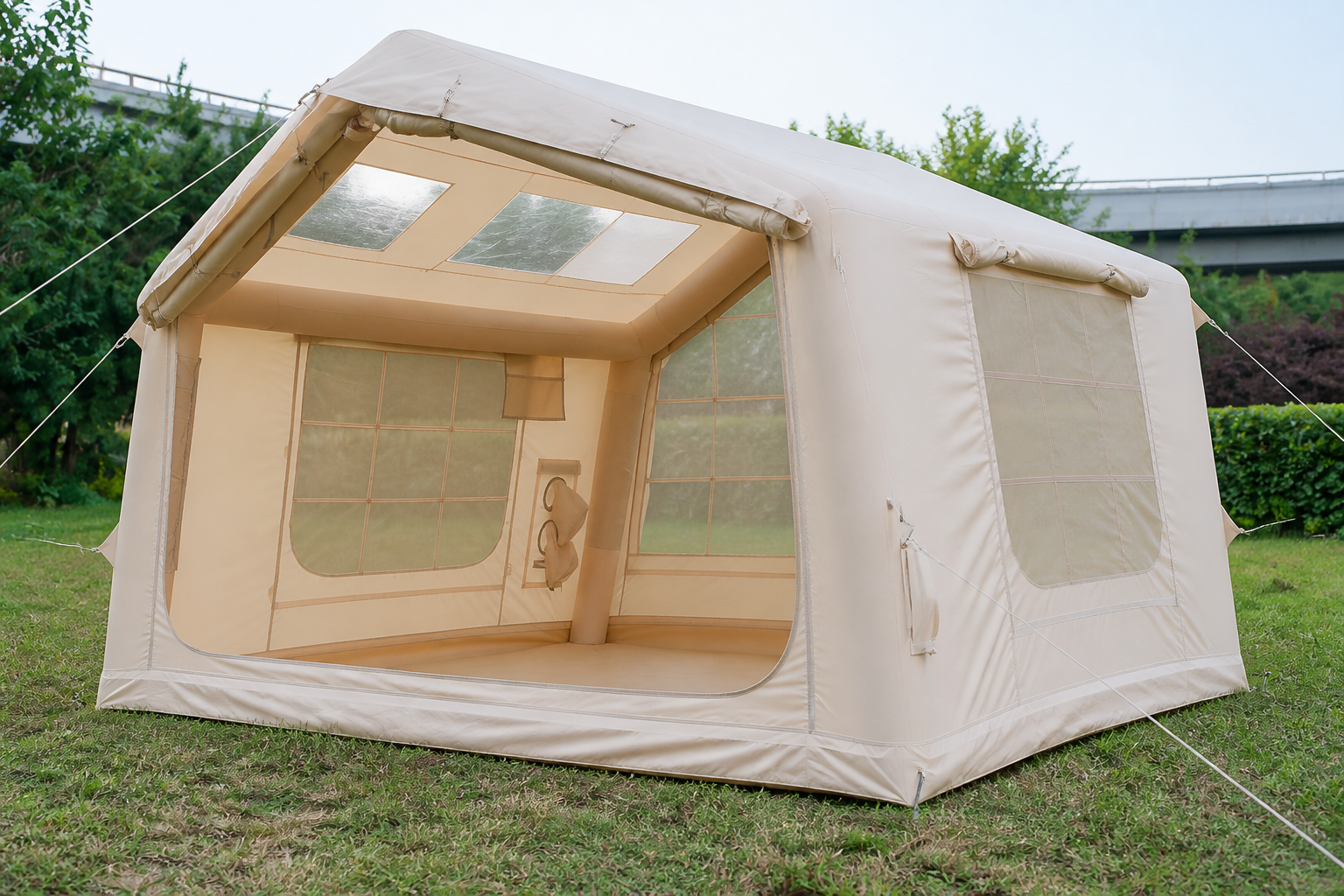

Air-frame and skylight details
420D Oxford fabric, twin small sunroofs, mesh windows and utility ports are shown up close.

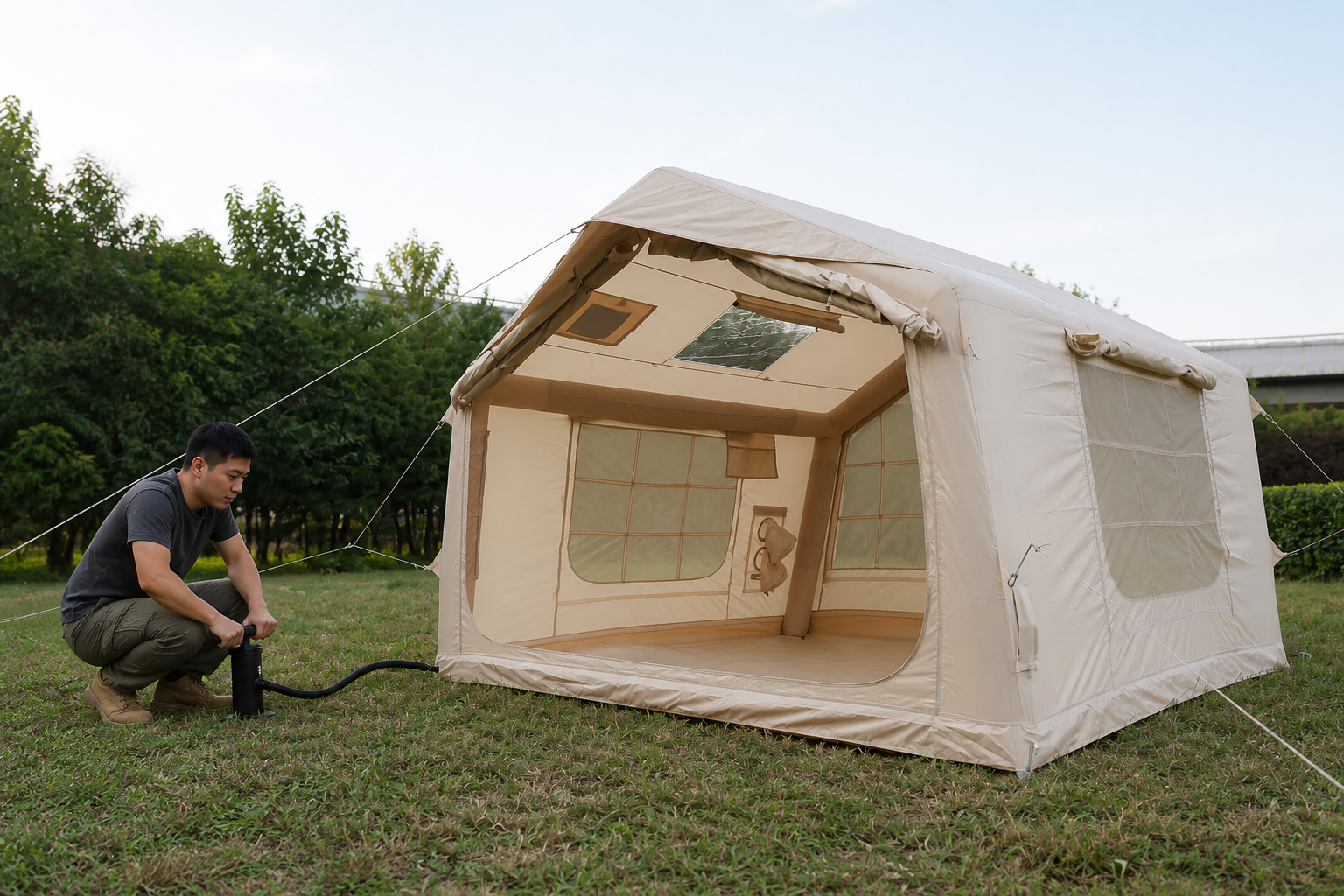

Catalog-listed inflation time
The current catalog lists approximately five minutes for inflation under normal conditions with the supplied pump. Unpacking, positioning, anchoring and guy-line setup require additional time.
Product gallery
Interior, lifestyle and supplied components.
Wholesale & OEM
Review this model before production.
IT027 is available for review by distributors, outdoor retailers, campsite operators and private-label programs. Final specifications are subject to model and order requirements and are confirmed before production.
- Select model and material
- Confirm visible color
- Review logo placement
- Review carry bag and packaging
- Confirm instruction language
- Confirm accessory list
- Confirm destination-market testing
- Confirm order quantity and production schedule
FAQ
Decision questions for IT027
When should a buyer shortlist the Khaki IT027?
Shortlist IT027 when the verified 420D Oxford, Khaki color, 21.6 kg listed weight and shared 8.0 m² dual-entry geometry fit the planned range. Khaki is a visible color choice, not evidence of different weather or durability performance.
Is IT027 a verified eight-person comfort tent?
No. The 5–8 person description is the current catalog range, not a verified comfort-capacity claim. Practical occupancy depends on sleeping-pad or mattress dimensions, gear storage and the amount of personal space expected by the target market.
What does the 3000 mm figure mean for IT027?
IT027 has a 3000 mm complete-tent waterproof rating. The test method and certification evidence are not stated, so request that documentation before using the rating in destination-market claims.
Does the 3000 mm waterproof rating mean IT027 seams will not leak in rain?
No. IT027 lists a 3000 mm complete-tent waterproof rating. That figure is a catalog-listed water-resistance value for the complete tent; the waterproof test method and certification evidence are not stated on this page. A hydrostatic-head number is not the same as a verified promise that every seam will stay dry in every weather or rental use case. Buyers who need destination-market claims should request the test method, scope and any certification documents before repeating the rating in their own materials. Seam workmanship, site drainage, anchoring and care still affect field results. If your RFQ requires seam QC documentation or rain-return handling terms, list those requirements explicitly for model IT027.
How can wholesale buyers inquire about replacement air columns or spare parts for the IT027?
Wholesale and private-label buyers can include spare-part requirements in their IT027 quotation requests. The listed air-column specification is Ø15 cm / 0.52 mm, and an air pump is included with the tent.
Replacement air columns, valves, repair kits and other components are subject to confirmation of availability, compatibility, packaging and lead time for each order. Any specific valve type or replacement component must be confirmed in writing before ordering.
Please provide the model, required quantity, destination market and parts needed so our team can review your request. For general maintenance guidance, see our Inflatable Tent Care and Air-Beam Repair guide.
What after-sales details should distributors confirm before ordering the IT027?
Distributors should confirm warranty terms, repair procedures, spare-part availability, replacement component compatibility and required documentation before placing an order.
The IT027 includes an air pump, with a listed inflation time of approximately five minutes. This does not include positioning, anchoring or other setup activities.
For routine care and troubleshooting guidance, please refer to our Inflatable Tent Care and Air-Beam Repair guide. For order-specific replacement parts, warranty arrangements or technical documentation, include your requirements in the quotation request so they can be reviewed and confirmed.
What should buyers confirm before ordering IT027?
The air pump is supplied with the tent. Confirm the production color, other accessory requirements, logo and packaging fields, anchoring guidance, repair process, replacement air-beam availability, warranty terms and required test documentation.
